Mini-Contest compass

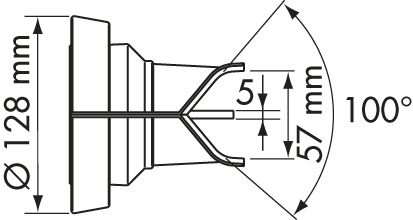

Mounting on vertical bulkhead :

• Compatible with drilling Ø of former model same size
• Fits any bulkhead thickness :
– standard thickness (40 mm max) : the compass is secured with threaded rods.
– thick or double bulkhead : the compass is secured with Parker screws on both sides of the bulkhead.

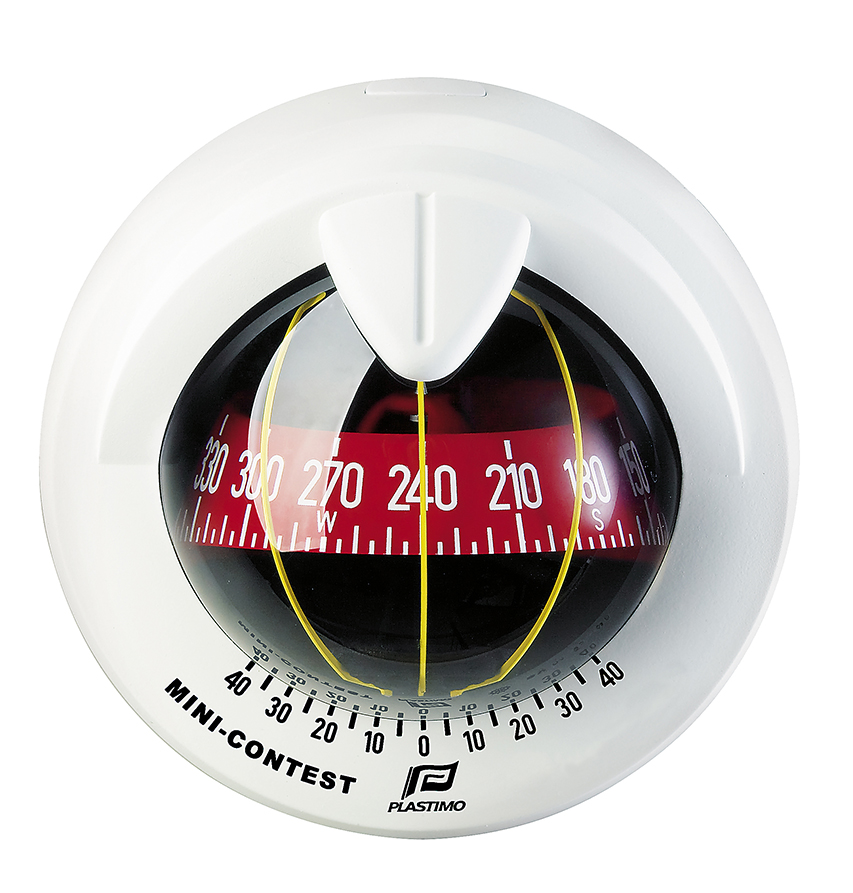

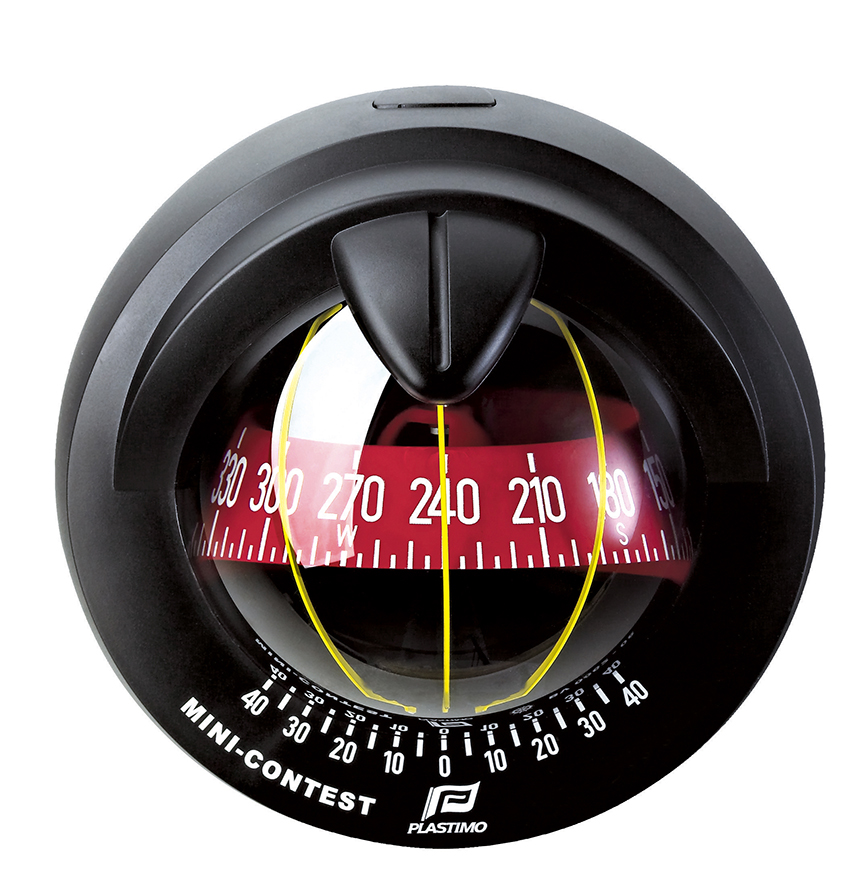

MINI-CONTEST

Boat size Sailboat up to 9 m (30 ft)

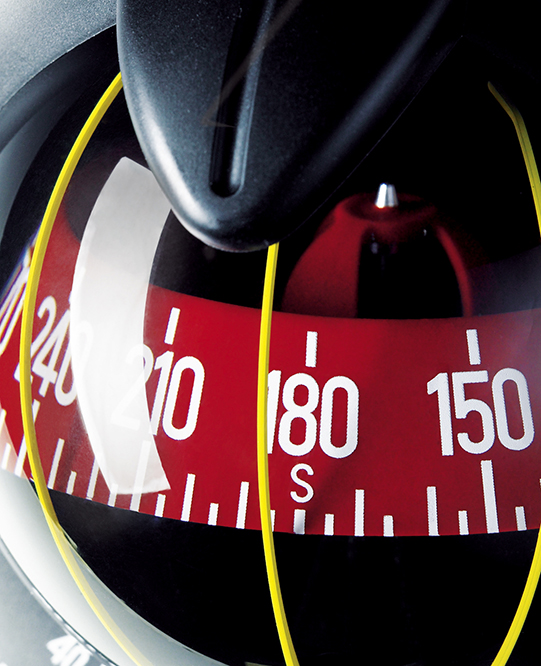

Card Red conical card, graduated every 5°, apparent Ø 81 mm.
Heading numerals every 30°.
Mounting
  • Flushmount on vertical bulkhead
  • On the mast (with optional mast mounting kit)
Lubber lines 3 lubber lines, at 45°.
Heelmeter Graduated every 10°.
Compensation Optional
Lighting LED 12-24 V.
Supplied with Protective cover, drilling template, threaded rods.
Homologation ISO 613 compliant

Descriere

Mounting on vertical bulkhead :

• Compatible with drilling Ø of former model same size
• Fits any bulkhead thickness :
– standard thickness (40 mm max) : the compass is secured with threaded rods.
– thick or double bulkhead : the compass is secured with Parker screws on both sides of the bulkhead.

MINI-CONTEST

Boat size Sailboat up to 9 m (30 ft)
Card Red conical card, graduated every 5°, apparent Ø 81 mm.
Heading numerals every 30°.
Mounting
  • Flushmount on vertical bulkhead
  • On the mast (with optional mast mounting kit)
Lubber lines 3 lubber lines, at 45°.
Heelmeter Graduated every 10°.
Compensation Optional
Lighting LED 12-24 V.
Supplied with Protective cover, drilling template, threaded rods.
Homologation ISO 613 compliant
