ColdMachine 50 cooling units

	Cooling units		Compatible evaporators

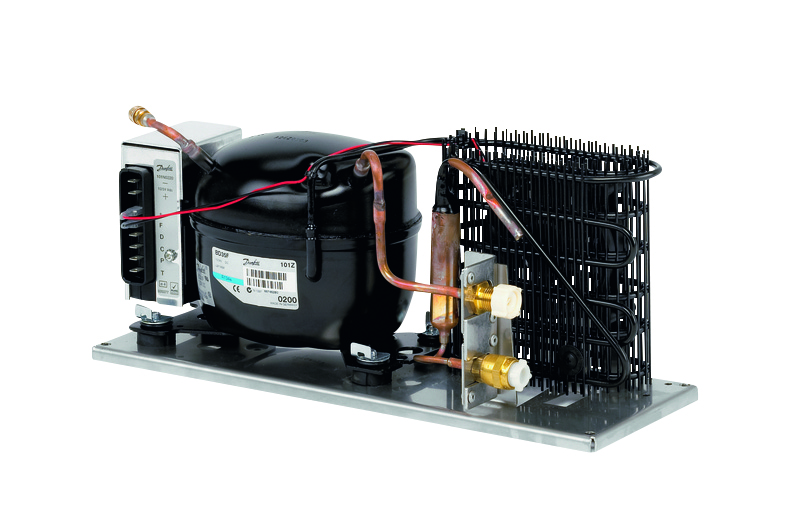

Model	CU-54	CU-55	Series 50** VD-01 L-shaped	Series 50** VD-02 with plates	Series 50** VD-07, O-shaped
Ref.	180238	180239	180312**	180313**	180318**
Cooling Capacity*	100-130 L	100-130 L	Max. 100 L	Max. 50 L	Max. 130 L
Consumption*	–	–	1.17 Ah/h	1.02 Ah/h	1.17 Ah/h
Power input (depends on evaporator)	34-40 W	35-40 W	35 W	35 W	35 W
Dimensions – mm (W x H x D)	386 x 165 x 130	220 x 160 x 220	300 x 270 x 110	275 x 240 x 25	255 x 210 x 90
Weight	6 kg	6.5 kg	1.5 kg	1 kg	1.5 kg

*Depends on evaporator type, with 50 mm PU insulation.
**Horizontal or Vertical installation.
